Chris's B6T Swap Pg 29

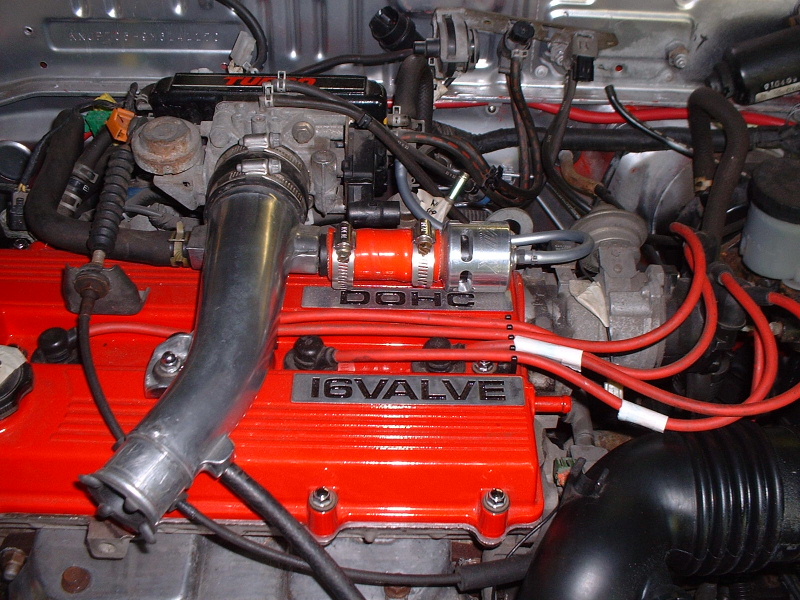

This pic is of the top of the B6T in the car, note I have mounted the Bailey BOV, it is a vent to atmosphere type and needs no return plumbing.

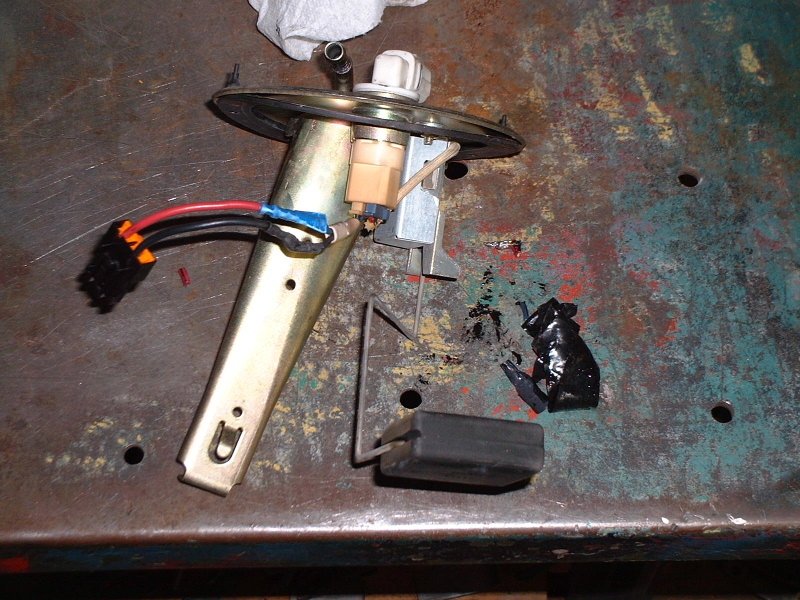

This is a shot of the replacement fuel pump. A Walbro for a first gen eclipse shown here mounted to go into the tank, it is a direct fit, replacement for the stock denso pump and flows 255lph, install is very straight forward, requireing only the splicing of the Walbro connector to the stock hot and ground wires. The red wire splices to the stock blue wire, black to black. Use butt connectors or use heat shrink if you solder connect this. DO NOT USE ELECTRICAL TAPE IN THE GAS TANK . See that black pile of goo next to the pump? That is what happens to electrical tape after only two days exposure to the fumes in the gas tank. Use butt connectors.

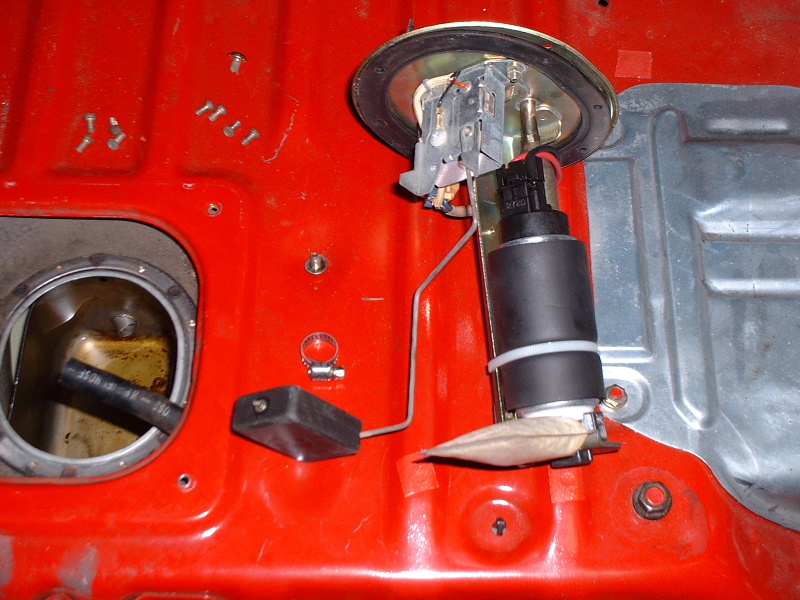

This is a shot of the pump assembly ready to go back in, note the better quality hose clamp for the output hose after it goes in.

Author: Chris Rummel
