Chris's B6T Swap Pg 14

Wastegate Dump Tube

Another shot showing under the downpipe where the wastegate gases go back into the exhaust. Note the gaps, these would not have happened had I had a fishmouth cutter (oh well just have to weld a lot).

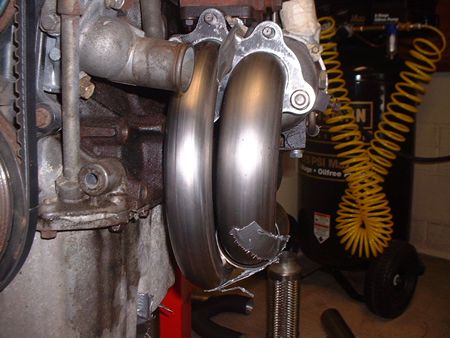

Downpipe to Engine Clearance

This shows the downpipe fitment distance from the engine and from the front of the turbo. I wanted to keep it pretty much within this area.

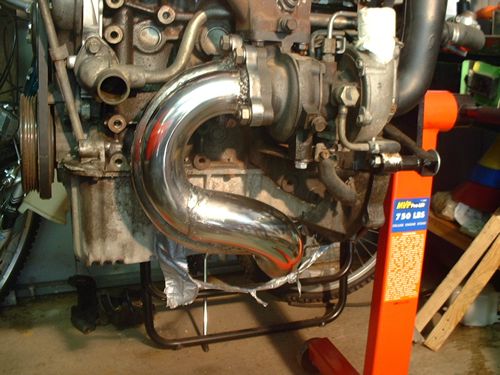

Polished Downpipe

This is the first shot of the finished dp (except I still need to weld on the flange to connect to the lower half). Notice I polished it for grins, as stainless polishes up really nice!

Author: Chris Rummel
