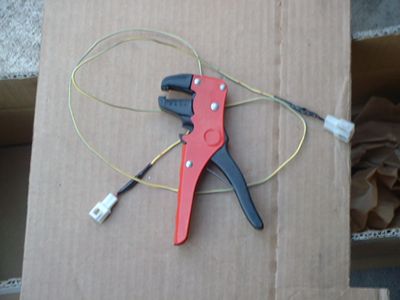

This is a shot of the tach jumper wire that I made with the same color wire and end connectors salvaged from the old Capri harness. Use this or similar to connect the two test connectors at the B6T coil connection and the stock Festy coil tach connection. Also a good shot of my handy wire stripper, get one of these as they are fantastic for easy fast wire stripping and cutting.

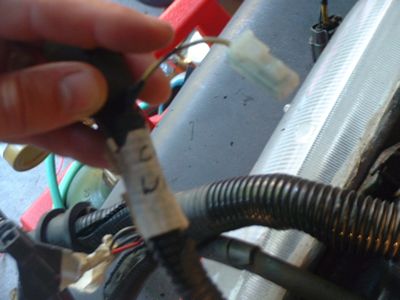

This is a shot of the connection for your tach jumper wire on the B6T harness, right at the test tach connector next to the coil wire. This connects the tach signal to the Festy harness and up to the tach without having to hard wire it.

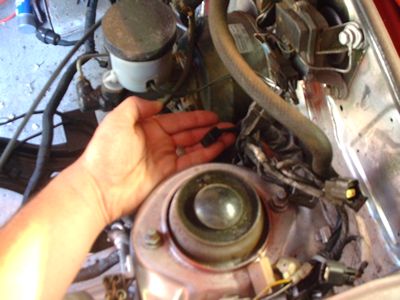

This is the connection for the tach jumper on the Festy wiring side. Note the Festy wiring all tied back.

Author: Chris Rummel
