Chris's B6T Swap Pg 11

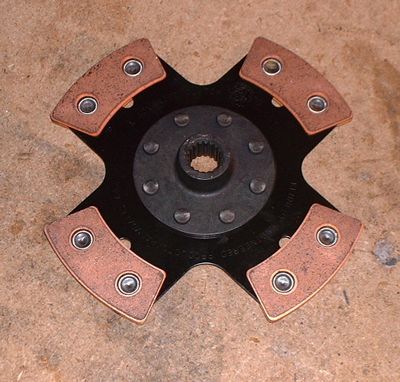

4-puck ACT racing clutch disc

This is the 4-puck racing clutch from ACT. should hold but prove challenging to drive on the street.

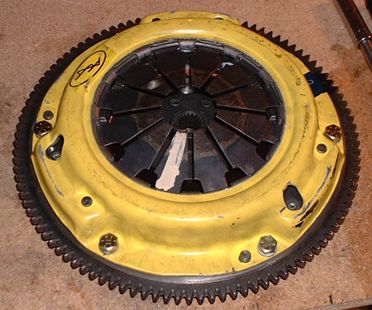

Mocking up clutch to set clearance in transaxle

This is the clutch attached to the pressure plate, I assembled it to use as a guide to marking and clearancing the bellhousing.

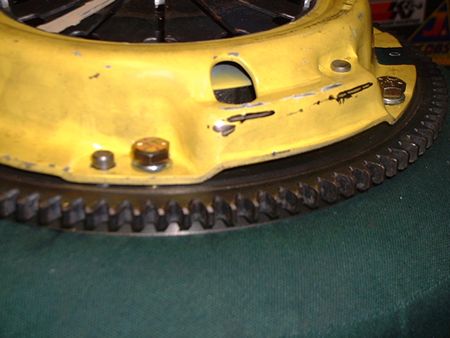

Mark pressure plate

This is a how I determined how much material to remove from the bellhousing using a sharpie pen I put the assembly on the input shaft and marked from where it cleared on the clutch.

Author: Chris Rummel
