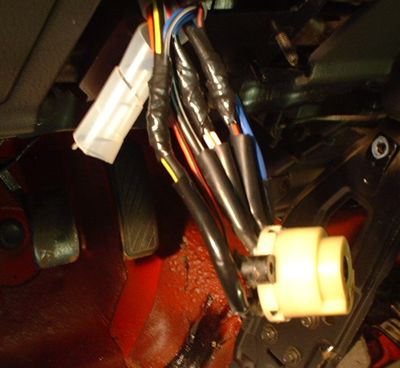

A second pic of the ignition switch connections

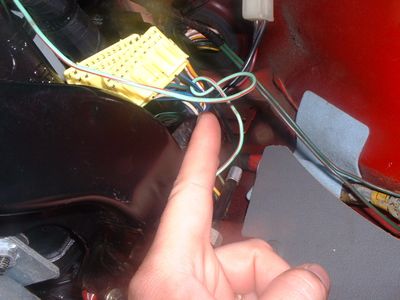

In this pic you see the light green with red stripe wire wrapped around the same wire from the B3 ecu connection. the wire from the Festiva is blue with black stripe and the connection from the B3 ecu harness was an easy place to splice it in. Also note that you unplug the B3 ecu and remove it if you wish.

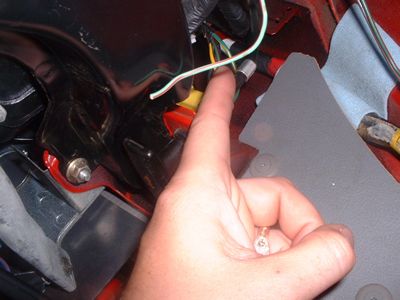

In this pic you see the stock Festy fuel relay with a green wire with yellow stripe, this later becomes two wires and attaches to the fuel pump. my finger is pointing to the wire at the relay

Author: Chris Rummel
